Haibike

2023 Haibike Allmtn Cf 9 750Wh Electric Bike in Fade Blue

£3,899.00 £5,699.00 32% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

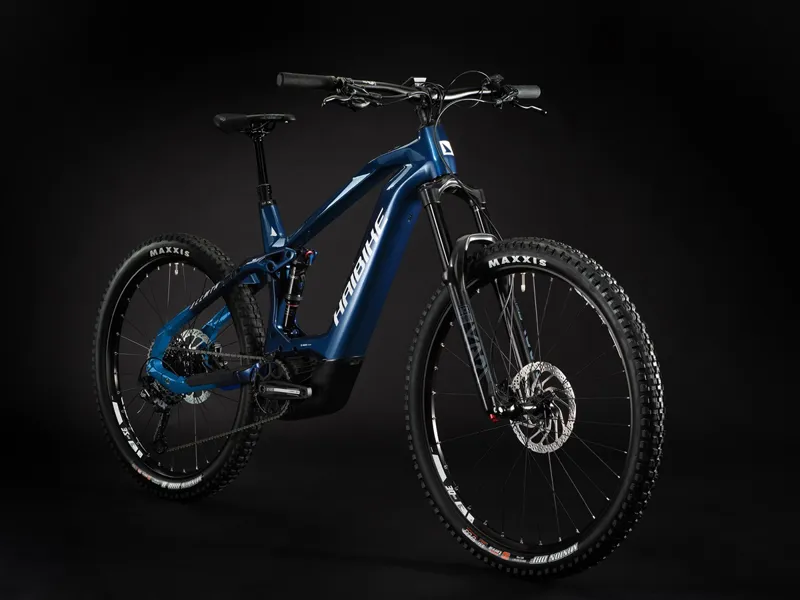

2023 Haibike Allmtn Cf 9 750Wh Electric Bike in Fade Blue

Season:2022

Brand:Haibike

Code:HMFN1BLU

Are you looking for an eMTB for a wide range of uses?

A mountain goat that also has downhill in its DNA? Then you will have a lot of fun on the trails with the 2022 Haibike AllMtn CF 9 with carbon main frame and aluminium rear triangle.

Uphill, the brand new Bosch Performance CX Smart System motor supports you with up to 85Nm of torque, while the mixed wheel size concept with 27.5" at the rear ensures perfect traction.

Downhill, you enjoy a comfortable rollover with 29" wheel at the front, while the 160mm RockShox Yari air suspension fork absorbs all the bumps. Thanks to the SRAM NX Eagle rear derailleur, you'll always find the perfect gear ratio, and the snappy 4-piston disc brakes from Magura will bring you to a stop quickly in any situation.

Included With Your Purchase
  • FREE 6 week service available
  • Fully Built and Tested by Approved Technicians
  • Charger, Keys and Owners Manual Included
  • Ride Ready with Supplied Pedals
  • Technical Bicycle Handover (included with click and collect and personal delivery)
  • On going prioritised support
Technical Information

SPECIFICATIONS

    • ENGINE

      Bosch, Performance CX Smart System, 250 W, 85 Nm

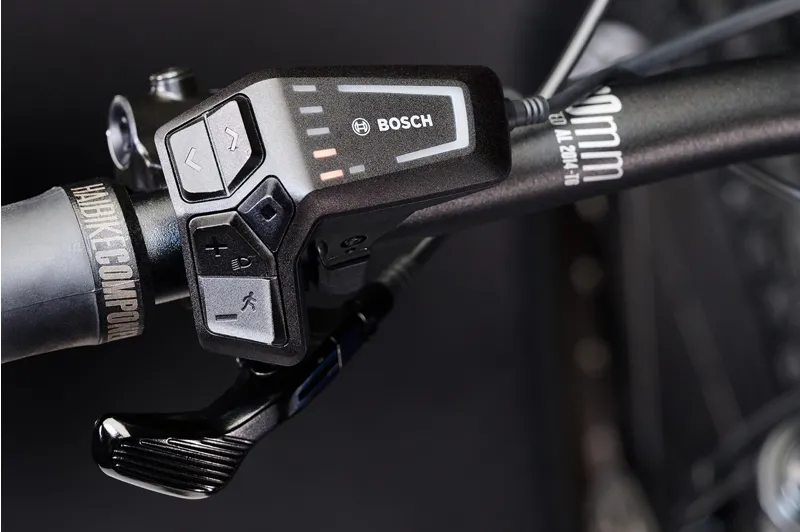

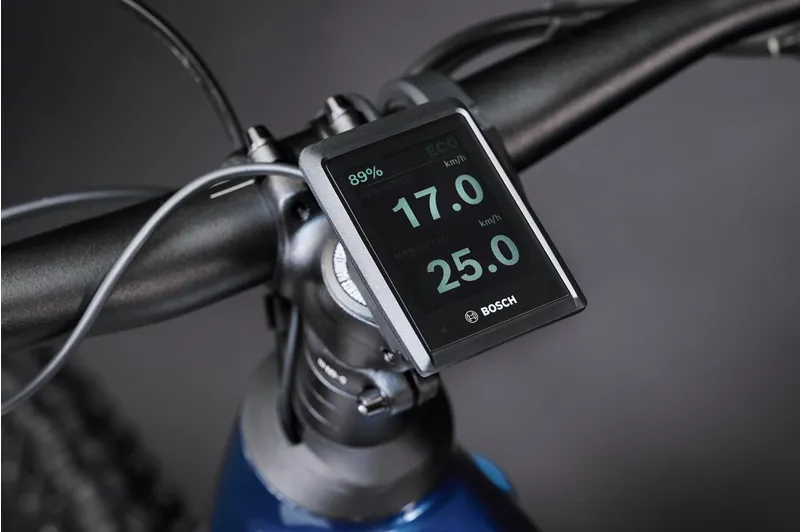

    • DISPLAY

      Bosch, Kiox 300 + LED Remote

    • BATTERY

      Bosch, PowerTube, 750 Wh

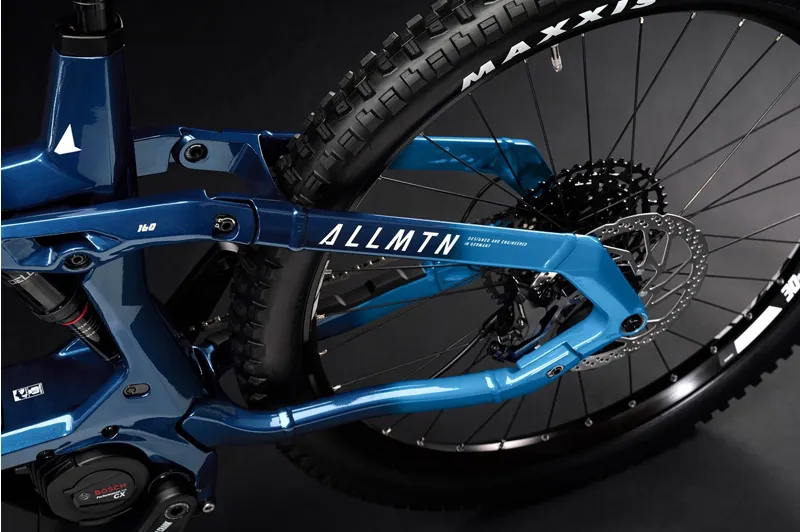

    • FRAME FAMILY

      Haibike, AllMtn Bosch CF Smart System, Carbon/aluminium

    • FORK

      RockShox, Yari RC, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost

    • DAMPER

      RockShox, Deluxe Select Plus, Air, Trunnion Mount

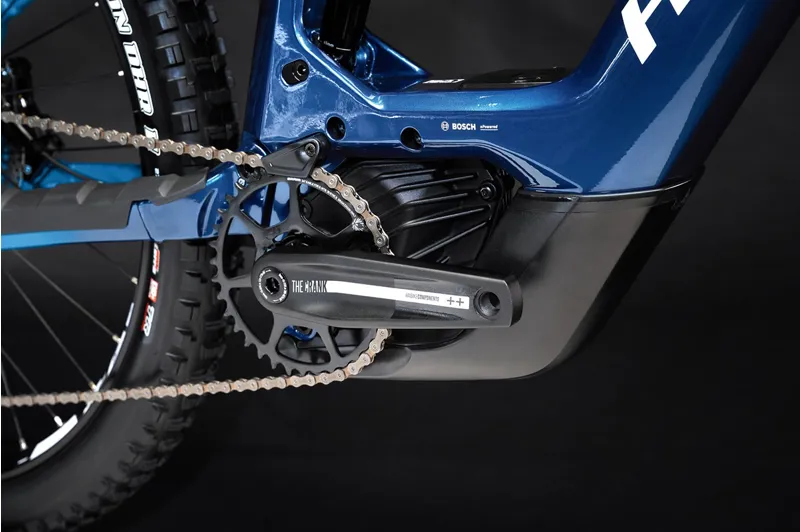

    • CRANK ARM

      Haibike Components, The Crank ++, Aluminium

    • BRAKE (FRONT)

      Shimano, MT420, 4-piston disc brake

    • BRAKE (REAR)

      Shimano, MT420, 4-piston disc brake

    • TUBE

      Presta valve

    • RIM

      Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium

    • CLAMPING RING

      Internal hexagon, 34.9 mm

    • REAR DERAILLEUR

      Sram, NX Eagle

    • SHIFT LEVER

      Sram, SX Eagle, Trigger switch

    • BOTTOM BRACKET

      integrated in the motor

    • SPROCKET

      Sram, Eagle PG1210, 11 - 50 teeth

    • CHAIN

      Sram, SX Eagle

    • CHAINRING

      Sram, Aluminium, 36 teeth

    • CHAIN GUIDE

      Nylon directmount

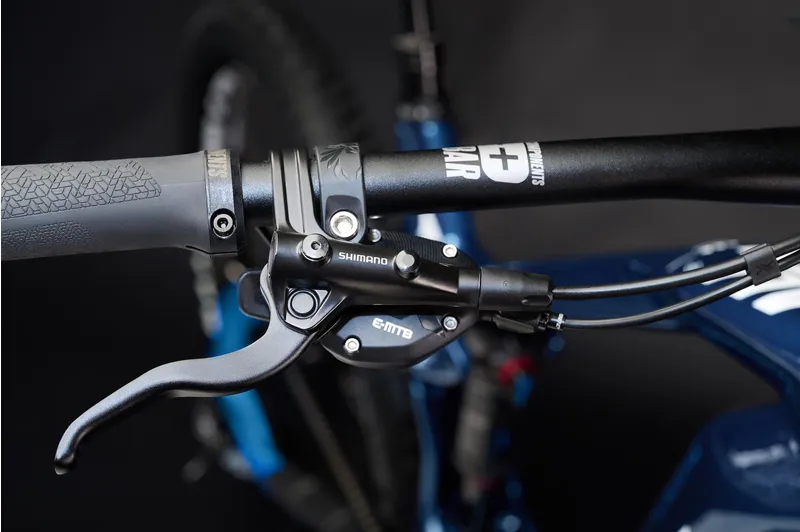

    • BRAKE LEVER

      Shimano, MT401, Aluminium

    • BRAKE DISC (FRONT)

      Shimano, RT30-L, 203 mm

    • BRAKE DISC (REAR)

      Shimano, RT EM300L, 203 mm

    • TYRE

      Maxxis, Minion DHF II, 65-622, 29 x 2.5 inch

    • FRONT WHEEL HUB

      Shimano, MT400-B, Centerlock

    • REAR WHEEL HUB

      Shimano, MT400-B, Centerlock

    • SPOKES

      Sapim, Leader

    • HANDLEBAR

      Haibike Components, TheBar ++, 780 mm

    • GRIPS

      Haibike, MTB grips

    • STEM

      Alu, A-head, 31.8 mm

    • HEADSET

      Acros, Cable integration, Aluminium

    • SADDLE

      fi'zi:k, Terra Aidon X5-160

    • SEAT POST

      Dropper-Post Remote 31.6, Aluminium, Telescope, 31.6 mm

    • PEDALS

      Freeridepedal, Aluminium, with Reflector

    • PERMITTED TOTAL WEIGHT

      120.0 kg

    • TYRE (REAR)

      Maxxis, Minion DHR II, 71-584, 27.5 x 2.8 inch

    • RIM (REAR)

      Rodi, Tryp 35, Aluminium, With Eyelets, Double Wall,
