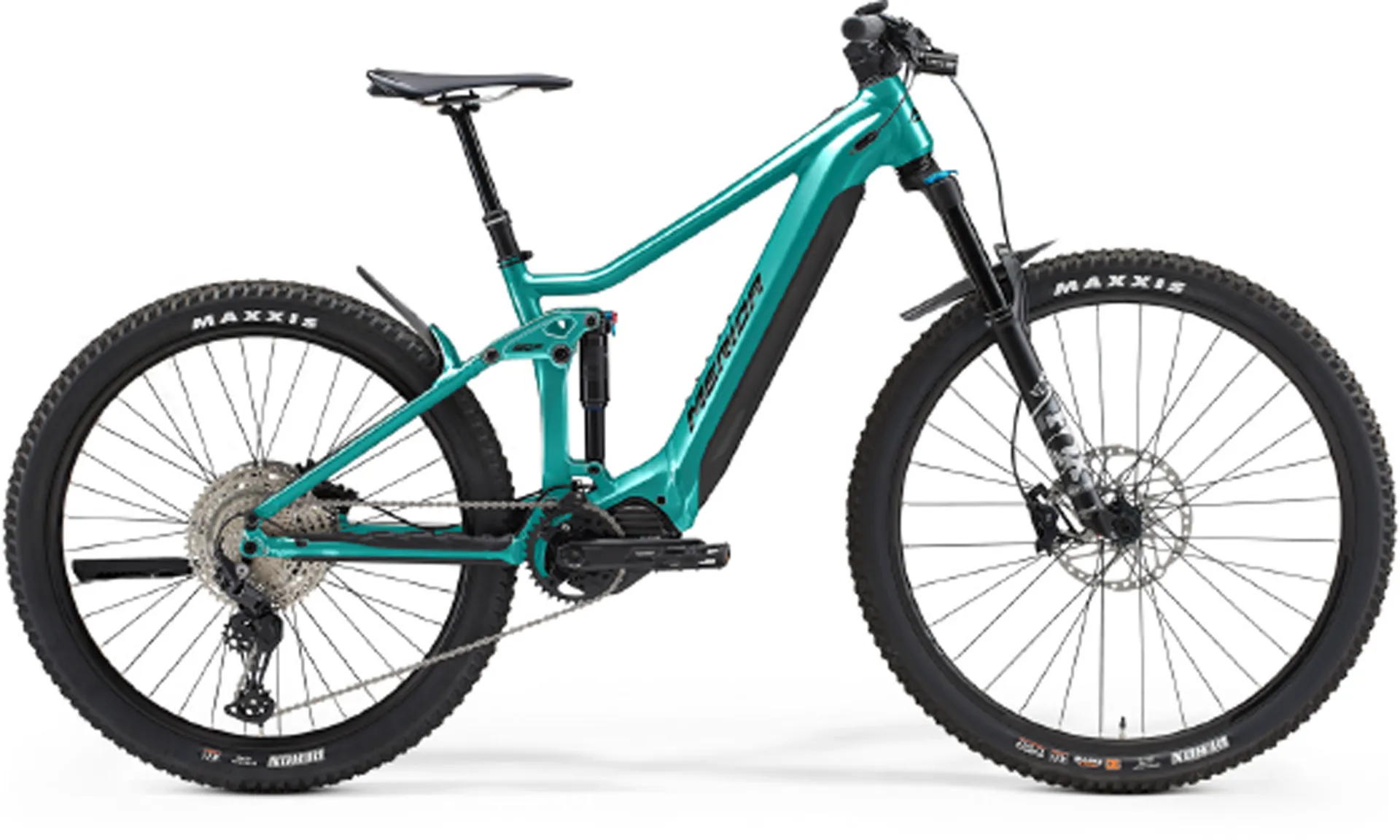

Merida eOne-Forty 500 Electric Bike in Blue

Season:2023

Brand:Merida

Code:P-N824

The eone-sixty is the headline grabber of the Merida e-bike range; for 3 generations it's been winning tests, gathering accolades and generally hogging the limelight!

The eone-forty shares exactly the same frame and design features but has different ride characteristics. The shock stroke on the eone-forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach, delivering a slightly steeper head angle.

In combination these small changes make the eone-forty more agile and playful; a highly competent climber that's perfect for all day riding.The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic rolling over obstacles behaviour yet maximum traction, a 29er front wheel with a 2.5 tyre is combined with a 650b rear wheel, equipped with a slightly wider 2.6 tyre. The perfect combination of precision, playfulness and traction.

All eone-forty models use the powerful Shimano ep8 85nm motor and bigger 630wh battery (with the exception of frame size - s which uses 504wh). Shimano's e-tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising
Technical Information
  • Frame
    Lite III - Hydroformed 6061 double butted aluminium with intergrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5 x 2.8.
  • Rear Shock
    Suntour RS-Edge-TR-LO-R8-M6; lockout
  • Fork
    Marzocchi Z2 eMTB+; Air; 140mm travel; Tapered; 51mm fork offset. Max. tyre size: 29 x 2.6
  • Headset
    Merida-8152
  • Stem
    Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point.
  • Handlebar
    Merida Expert eTR; 780mm wide; 20mm rise
  • Grip
    Merida Expert EC
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano M4204
  • Brake Calipers
    Front: Shimano M4204; 4 piston hydraulic disc brake caliper with Shimano RT30; 203 mm rotor Rear: Shimano M4204; 4 piston hydraulic disc brake caliper with Shimano RTEM300; 203 mm rotor
  • Tyres
    Front: Maxxis Rekon; 29 x 2.4; Dual; wire bead Rear: Maxxis Rekon; 27.5 x 2.6; EXO; wire bead
  • Wheel Size
    29 / 27.5
  • Wheels
    Rims: Merida Comp TR; 29mm inner rim width; Aluminium Spokes: Black stainless Front Hub: Shimano MT400-B; 110x15mm; 32 spokes; Center lock Rear Hub: Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key
  • Speeds
    11
  • Rear Derailleur
    Shimano Deore RDM5100 11
  • Shift Levers
    Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever
  • Chain
    KMC e11S EPT
  • Cassette
    Shimano M5100; 11-51 teeth; 11 speed
  • Chainset
    Shimano CRE70-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank
  • Bottom Bracket
    Part of Shimano Steps motor
  • Pedals
    VP Components, VPE-537
  • Saddle
    Merida Comp SL; V-mount
  • Seat Post
    Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M/L), 150mm (XL/XXL)
  • Motor
    Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm
  • Battery Capacity
    630 Wh
  • eBike Display
    Shimano SC-E5003A
