The eone-sixty is the headline grabber of the merida ebike range; for 3 generations it's been winning tests, gathering accolades and generally hogging the limelight!
The eone-sixty is the headline grabber of the merida ebike range; for 3 generations it's been winning tests, gathering accolades and generally hogging the limelight!
Merida

Merida eOne-Forty 700 Electric Bike in Grey

£4,199.00 £5,650.00 26% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

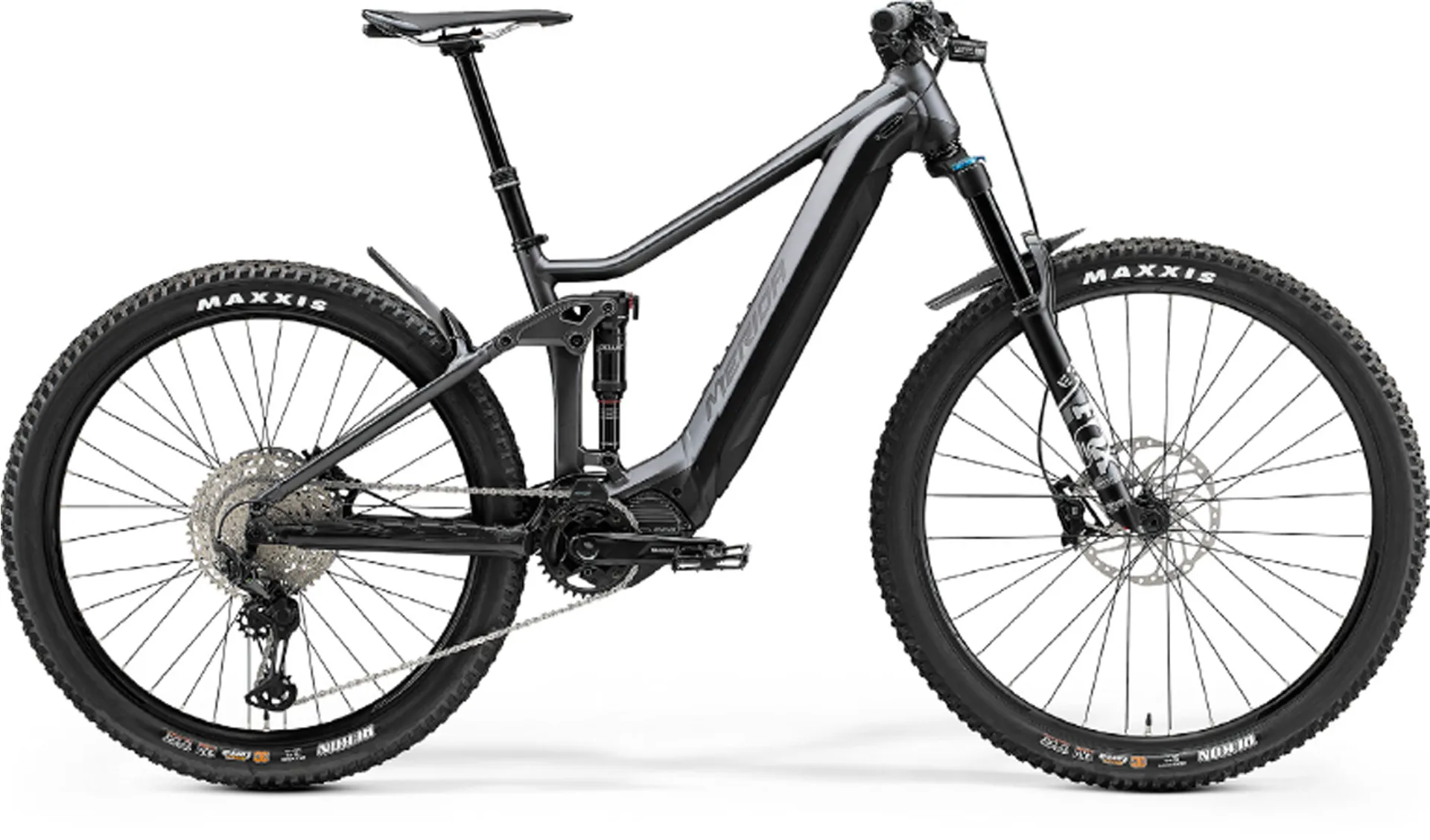

Merida eOne-Forty 700 Electric Bike in Grey

Season:2023

Brand:Merida

Code:P-N832

The eone-sixty is the headline grabber of the merida ebike range; for 3 generations it's been winning tests, gathering accolades and generally hogging the limelight!

The eone-forty shares exactly the same frame and design features but has different ride characteristics.The shock stroke on the eone-forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach, delivering a slightly steeper head angle. In combination these small changes make the eone-forty more agile and playful; a highly competent climber that's perfect for all day riding.

The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic rolling over obstacles behaviour yet maximum traction, a 29er front wheel with a 2.5 tyre is combined with a 650b rear wheel, equipped with a slightly wider 2.6 tyre. The perfect combination of precision, playfulness and traction.

All eone-forty models use the powerful Shimano ep8 85nm motor and bigger 630wh battery (with the exception of frame size - s which uses 504wh). Shimano's e-tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising.
Technical Information
  • Frame
    Lite III - Hydroformed 6061 double butted aluminium with intergrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5 x 2.8.
  • Rear Shock
    RockShox Deluxe Select+; platform
  • Fork
    FOX Rhythm 34 Float eMTB+; Air; 140mm travel; Tapered; 51mm fork offset. Max. tyre size: 29 x 2.5
  • Headset
    Merida-8152
  • Stem
    Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point.
  • Handlebar
    Merida Expert eTR; 780mm wide; 20mm rise
  • Grip
    Merida Expert EC
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano SLX
  • Brake Calipers
    Front: Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RT64; 203 mm rotor Rear: Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RTEM600; 203 mm rotor
  • Tyres
    Front: Maxxis Rekon; 29 x 2.4; kevlar bead; 3C EXO MaxxTerra Rear: Maxxis Rekon; 27.5 x 2.6; kevlar bead; TR 3C EXO MaxxTerra
  • Wheel Size
    29 / 27.5
  • Wheels
    Rims: Merida Expert TR; 29mm inner rim width; Aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Black stainless Front Hub: Shimano SLX; 110x15mm; 32 spokes; Center lock Rear Hub: Shimano SLX; 148x12mm, 36 spokes; Center lock; including removable lever with 4/6mm Allen key
  • Speeds
    12
  • Rear Derailleur
    Shimano XT RDM8100 Shadow+ 12
  • Shift Levers
    Shimano Deore SL-M6100 12 speed with Shimano SL -MT500-IL lever
  • Chain
    KMC e12T EPT
  • Cassette
    Shimano M6100; 10-51 teeth; 12 speed
  • Chainset
    Shimano CRE80-12-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank
  • Bottom Bracket
    Part of Shimano Steps motor
  • Pedals
    VP Components, VPE-527
  • Saddle
    Merida Expert CC; V-mount including Merida multitool
  • Seat Post
    Merida Expert TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M), 150mm (L/XL), 170mm (XXL)
  • Motor
    Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm
  • Battery Capacity
    630 Wh
  • eBike Display
    Shimano SC-E7000
